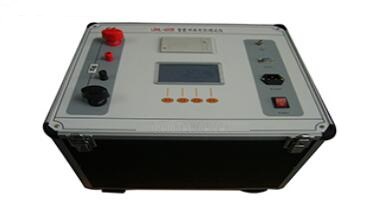

SFHL-600B智能回路接觸電阻測試儀
發布日期：2020-06-20 點擊：3773次
產品別稱
智能回路電阻測試儀、智能接觸電阻測試儀、接觸電阻測試儀、開關回路電阻測
試儀、接觸回路電阻測試儀
產品簡介
智能回路接觸電阻測試儀是用于測量開關、斷路器、變壓器等設備的接觸電阻、
回路電阻的專用測試設備。其采用典型的四線制測量法，通過輸出一個直流電流
，施加于被測體的兩個端鈕之間，并測量電流流過被測體所產生的壓降，然后通
過電壓和電流之比得出被測體的直流電阻。主要由恒流源、前置放大器、A/D轉換
器、指示裝置等部分組成。
Loop resistance tester is the special test equipment for measuring the
contact resistance and loop resistance of some devices such as switch,
circuit interrupter, and transformer and so on. It adopts the typical
four-wire method of measurement which helps get the DC resistance
through the following steps: outputting a DC current, applying the
current to the tested body by linking its two terminals, and measuring
the voltage drop when the current goes through the tested body, then
dividing the current by the voltage. In addition, it mainly consists of
constant current source, preamplifier, A/D converter, indicating device
and so on.
產品特征
1 結合硬軟件設計：智能回路接觸電阻測試儀采用高精密電子線路和高性能單片
機，使得儀器具有測量速度快，數值穩定，重復性能好等特點。
1）Design with hardware and software: endowing the instrument with some
features such as high measuring speed, numerical stability, and good
repeatability and so on by using electronic circuit of high precision
and SCM of high performance.
2 實時監測顯示現場電阻值、電流值。
2) Real-time monitor will display site resistance and current.
3 電流持續時間1分鐘以上，完全符合JJG 1052-2009回路電阻檢定規程。
3) If the duration of current is over 1 minute, it completely accords
with the verification regulation of JJG 1052-2009 loop resistance.
4 智能回路接觸電阻測試儀 測試電流來自高精度的100A/200A/600A開關式恒流電
源，無需人工調節，測試迅速準確。
4) A 100A/200A/600A switch constant-current supply of high precision,
for testing the current, can test quickly and accurately without manual
adjustment.
5 具有打印、存儲、實時查看數據等功能。
5) It has the functions of printing, storing, real-time viewing data
and so on.
6 采用了大屏幕漢字顯示、菜單操作，界面友好，一目了然，方便操作。
6) It is with a large screen to display characters, menus to operate,
and friendly interfaces to understand and process easily.
7 微型打印機為熱敏式打印機，速度快，表面可直接安裝打印紙。
7) Miniature printer is thermal printer with fast speed, which can be
installed printing paper directly.
8 具有電壓正負極之間及電流正負極之間互換接線測量功能。
8) It can also measure when exchanging wirings between positive and
negative poles of voltage, and between positive and negative poles of
current.
9 智能回路接觸電阻測試儀通過RS232串行口對設備內的數據進行管理，實現無
紙化辦公。
9) Manage the data of equipment through serial port RS232 instead of
paper.
產品參數
1 測量范圍：100A 0——20mΩ 持續300S
200A 0——10mΩ 持續120S
600A 0——3mΩ 持續60S
1) Measurement range: 100A 0——20mΩ last 300S
200A 0——10mΩ last 120S
600A 0——3mΩ last 60S
2、測量精度：優于0.5%
2) Measurement precision: better than 0.5%
3、分辨率：0.01μΩ
3) Resolution: 0.01μΩ
4、工作方式：連續測量
4) Operating mode: continuous measurement
5、顯示方式：液晶顯示
5) Display mode: LCD
6、計算機接口：RS232
6) Computer interface: RS232
7、打印方式：熱敏打印
7) Print way: thermal printing
8、環境條件：
溫度：－10℃—50℃
相對濕度：< 90%（25℃）
海拔高度： ≤1500米
電源頻率：50HZ±1HZ
8) Environment condition:
Temperature: －10℃—50℃
Relative humidity: < 90%（25℃）
Elevation: ≤1500m
Power supply frequency: 50HZ±1HZ
9 功率： ≤3100W
9) Power: ≤3100W
10 外形尺寸：長 460mm*寬400mm*高380mm
10) Boundary dimension: length 460 mm*width 400mm*height 380mm
11 重量： 16.5 Kg
11) Weight: 16.5 Kg
